Split Body Enclosures

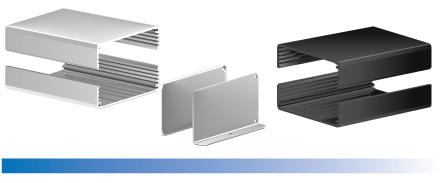

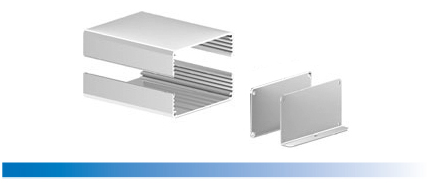

The Split Body design is a 4-part enclosure. The top and bottom halves are extruded aluminum, with interior slots to hold circuit boards. These parts are completely interchangeable, and fit together with a tongue on one side and a slot on the other.

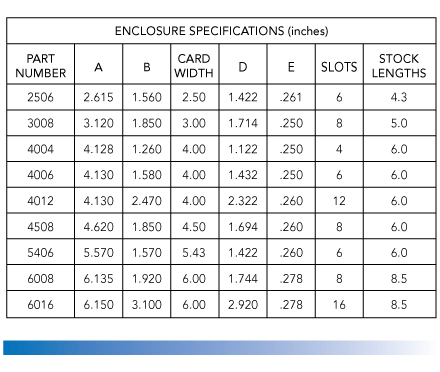

The end caps are have four mounting holes and are affixed to the extrusion with self-tapping screws. These enclosures are available in 9 different profiles, in widths from 2.5 inches to 6 inches.
Enclosures are available in a variety of finishes including painted, anodized and powder coated. The profile features a split design with customer choice of end cap configurations to meet a variety of design requirements. Custom modifications to your specifications include venting, hole cuts for connectors, silk-screening, laser etch printing and gasketing for outdoor applications.
Are you looking for a custom size, or configuration in an aluminum enclosure that you are unable to find here? Please allow us to quote your needs.
